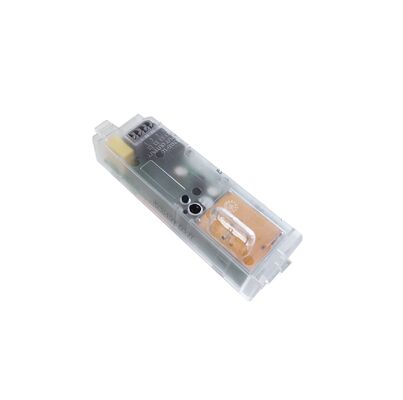

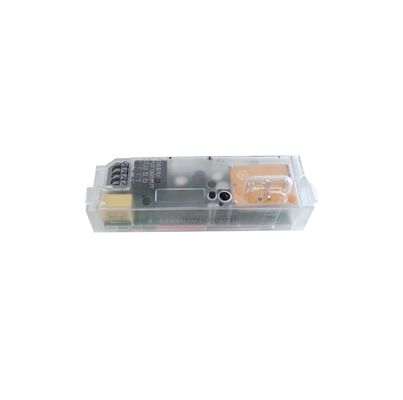

Parking Lot Use, Transparent ON/OFF Motion Sensor, Remote And Bottom DIP Switch Available

  • Parking Lot Use, Transparent ON/OFF Motion Sensor, Remote And Bottom DIP Switch Available
  • Parking Lot Use, Transparent ON/OFF Motion Sensor, Remote And Bottom DIP Switch Available
  • Parking Lot Use, Transparent ON/OFF Motion Sensor, Remote And Bottom DIP Switch Available
Plaats van herkomst Shenzhen, China
Merknaam Merrytek
Certificering CE, RED
Modelnummer MC098S 99 3
Min. bestelaantal 100 stuks
Prijs Onderhandelbaar
Verpakking Details Bubbelzak + Karton + Karton ((K=A))
Levertijd 1, Voorbeeld en kleine bestelling: Binnen 5 werkdagen na ontvangst van uw betaling. 2, Bulk order: 4
Betalingscondities T/T
Levering vermogen 10000 stuks/maand

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Nominale spanning 220-240VAC 50/60Hz Stand-by-vermogen ≤0,5W
Uitgangssignaal Aan/uit Werkfrequentie 5.8GHz ±75MHz, ISM-band
Installatie Hoogte 3 m (6 m max.) Levensduur 5 jaar garantie@ta
Markeren

transparent on off motion sensor

,

parking lot motion sensor switch

,

remote dip switch motion sensor
Laat een bericht achter
Productomschrijving
Parking Lot Use, Transparent ON/OFF Motion Sensor
Remote and bottom DIP switch available for flexible configuration
Product Features
  • Patented coupling dipole antenna design and Adaptive Algorithm effectively solves low installation height issues and false triggering from side-lobe radiation in metal rooms
  • Ideal for parking lots and similar applications, overcoming traditional sensor limitations in vehicle detection
  • Easy configuration via remote control and DIP switches for sensor parameter settings
Technical Parameters
Input
Rated Voltage 220-240Vac 50/60Hz
Stand-by Power ≤0.5W
Surge Test 1KV(L/N,EN61000-4-5)
Output
Output Signal ON/OFF
Type of Load Inductive or Resistive
Load Capacity 200W@230Vac(Inductive); 400W@230Vac(Resistive)
Max. Surge Capacity 7A relay 20A(50% Ipeak, twidth =200uS, 230Vac full load, cold start)
Sensor Parameters
Working Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 1mW Max.
Detection Area (Radius) Ceiling mounting height 3m: r≥4m@0.3m/s, r≥2.5m@1m/s; Wall mounting height 3m: r≥5m@0.3m/s, r≥4m@1m/s (Test condition: Set 100% sensitivity, open 60㎡ indoor area)
Mounting Height 3m (6m Max)
Hold Time 5s/30s/90s/5min/20min/30min (Dial code) 5s/30s/1min/3min/5min/10min/20min/30min (MH10 setup)
Detection Area 100%/75%/50%/25%
Daylight Sensor Normal Daylight: 2Lux/10Lux/30Lux/50Lux/Disable 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (MH10 setup)
Operating Temperature -25℃…+60℃
Storage Temperature -40~80℃ Humidity: ≤85% non-condensing
Certificate Standards
Certified CE, RED
Environmental Requirements Comply with RoHS 2.0 Reach
IP Rating IP20
Other
Remote Model MH10; MH16; MH03
Wiring Press-in Type Terminals, wire diameter: 0.5-0.75mm²
Installation Built-in
Package Bubble bag+Clapboard + Carton(K=A)
Net Weight 40.3±3g
Lifetime 5 years warranty@Ta
Function Overview
Function Description
ON/OFF Function Light control disabled or external brightness lower than set value. When microwave sensor detects object movement, triggers light-on state. Maintains light-on state after delay, then enters light-off state.
Two-step Dimming Function N/A
Three-step Dimming Function N/A
Daylight Harvesting N/A
Daylight Priority N/A

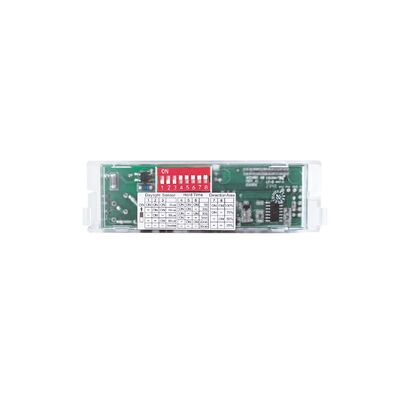

DIP Switch Settings
Dial Code Daylight Sensor Hold Time Detection Area
Ⅰ 2Lux 5S 100%
Ⅱ 10Lux 30S 75%
Ⅲ 30Lux 90S 50%
Ⅳ 50Lux 5min 25%
Ⅴ Disable 20min N/A
Ⅵ N/A 30min N/A
Radiation Pattern
Parking Lot Use, Transparent ON/OFF Motion Sensor, Remote And Bottom DIP Switch Available 0
MH10 Remote Control
Compatible remote control for sensor parameter configuration
Initialization
The light will be turned on at 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signals will be detected.
Default Settings
Sensitivity: 100% | Hold time: 5s | Daylight sensor: Disable
Application Notice
  • Sensor should be installed by a professional electrician. Turn off power before installing, wiring, or changing DIP switch settings
  • Sensitivity area relates to moving speed of objects, object size, mounting height, mounting angle, working environment, and reflecting materials. Given detection area is typical value measured by 165cm/65kg testers in indoor open environment
  • Detection area increases significantly when installed on walls compared to ceiling mounting. For wall ceiling installation, reduce sensitivity or contact manufacturer for usage settings
  • Daylight thresholds measured on sunny days without shadow in ambient light diffuse reflection. Different environments and climates affect measured brightness values
  • Sensor parameters may need reconfiguration in different installation environments - refer to instructions or contact manufacturer
  • For indoor use only. Outdoor or half-outdoor use affects waterproof performance. Wind, rain, and moving objects may cause false triggering
  • Installation height cannot exceed 6 meters (optimal height: 3 meters). Distance between two sensors should be greater than 3m
  • When installed in metal lamps, on metal reflective surfaces, or in small closed environments, microwave reflection may cause false triggering. Reduce sensitivity or contact manufacturer for technical support
  • Ensure no moving signals (fans, DC motors, sewer pipes, air outlets, etc.) around sensor to prevent false triggering
  • Microwaves cannot penetrate metal. Do not place product in closed or half-closed metal lamps. Metal or glass covering above product is not permitted
