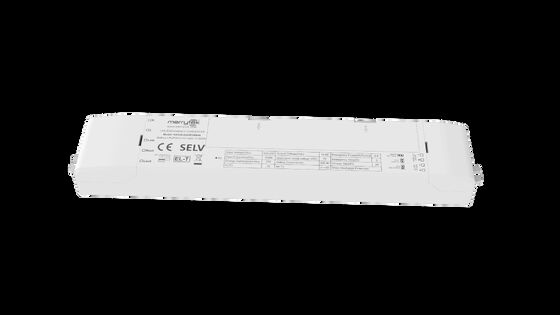

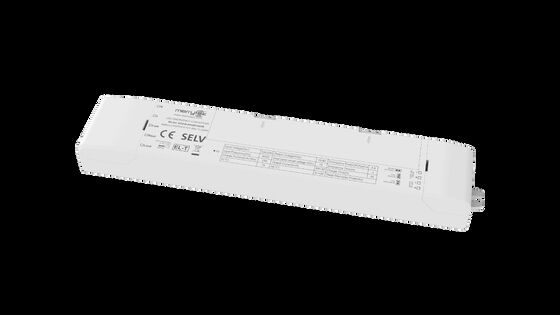

2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty

  • 2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty
  • 2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty
Plaats van herkomst China
Merknaam Merrytek
Certificering CE, UKCA, UN38.3, MSDS
Modelnummer KE036-02AM180HB1
Min. bestelaantal 100
Prijs Onderhandelbaar
Verpakking Details Eerst in een bubbelzak verpakt en vervolgens versterkt met karton voor de buitenverpakking
Levertijd 1, monster en kleine bestelling: binnen 5 werkdagen na ontvangst van uw betaling. 2, bulkorder: 3-4
Betalingscondities T/T of Western Union
Levering vermogen 10,000pcs per maand

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Nominale ingangsspanning 220-240Vac 50Hz /60Hz Noodkracht 2W (kan aangepast worden)
Noodtijd 180 min (kan aangepast worden) Garantie 5 jaar
Uitgangsspanning van de belasting 50-220Vdc Werktemperatuur 0 ℃ ~ 50 ℃
IP-classificatie IP20 Batterijtype LifePO4 6,4V 1800mAh
Markeren

2W LED emergency driver

,

self test emergency pack

,

5 year warranty emergency driver
Laat een bericht achter
Productomschrijving
2W Standard and Self Test Emergency Packs
Constant power output LED emergency power supply with a wide output voltage range, featuring LifePO4 battery technology with a 5-year warranty.
Product Features
  • Constant power output LED emergency power supply with wide output voltage range
  • Input relay switching
  • High safety, high performance, long life LifePO4 battery
  • Integrated battery management system
  • Standard and self-test emergency packs
Technical Parameters
Charge Part
Model No. KE036-02AM180HB1
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak) @230Vac (Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 250mA Max.
Battery charging time 24 hours Max.
Emergency Part
Operating mode Emergency mode
Load type LED
Emergency power 2W
Emergency time 3 hours
Load output current 40-9mA
Load output voltage 50-220Vdc
Battery
LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1.8Ah
Battery warranty Warranty 5 years @25℃
Product Dimensions
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 0
Unit: mm
Wiring Diagrams
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 1
Basic wiring diagram
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 2
Fig A: With LED driver and LED module
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 3
Fig B: With LED module
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 4
Fig C: Loop in & out with LED module
Operation Instructions
Manual Test Mode
  • Before installation, set Pin short: Manual Test
  • Connect the wire according to the wiring diagram
  • L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply is normal charging. Turn off Switch S1; the load lamp turns off
  • Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by LED driver, the indicator light will turn on
Automatic Test Mode
  • Before installation, set Pin open: Automatic Test
  • Connect the wire according to the wiring diagram. Remove the test switch on the LED Emergency Driver
  • L, N power on, start the clock, and perform a periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
  • The battery should be recharged and discharged semiannually in normal use conditions
  • Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board
  • Please keep the battery away from the heat source when installing and using, and only be allowed to be used in a certain working temperature range
  • The battery should be stored in a cool and dry environment
  • After long-term storage, the battery is cycled every 6 months as required
  • AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.
