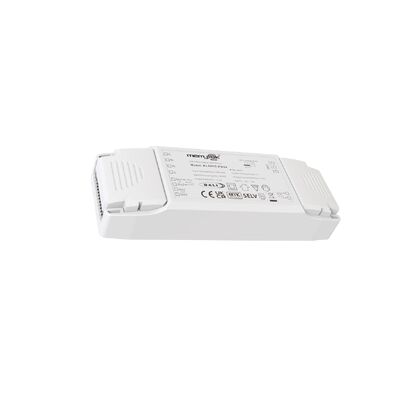

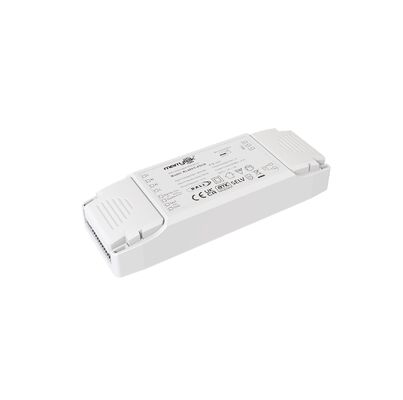

40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty

  • 40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty
  • 40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty
Plaats van herkomst China
Merknaam Merrytek
Certificering CE
Modelnummer KL40VC-PDiiV
Min. bestelaantal 100
Prijs Onderhandelbaar
Verpakking Details Witte doos + karton, 50 stuks/CTN
Levertijd 1, monster en kleine bestelling: binnen 5 werkdagen na ontvangst van uw betaling. 2, bulkorder: 3-4
Betalingscondities T/t of paypal
Levering vermogen 10,000pcs per maand

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Nominale ingangsspanning 220-240Vac 50Hz /60Hz DC-invoerspanning 200-240Vdc
Werkmodus constante spanning led-driver 12v Controlemethode DALI2, DUWEN, 0-10Vdc
Vermogensfactor ≥0,95 Efficiëntie 87%
Constante spanning 12VDC Dimensie 150x52x28mm
IP-beoordeling IP20 Garantie 5 jaar
Markeren

40W DALI dimmable LED driver

,

12V constant voltage LED driver

,

DT8 LED strip driver with warranty
Laat een bericht achter
Productomschrijving
40W Constant Voltage LED Driver 12V DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
High-performance 40W constant voltage LED driver with advanced dimming capabilities and comprehensive protection features.
Product Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series Name KL40VC-PDiiV
Input Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current 0.21A Max.@230Vac
Inrush Current 15A (Half current pulse width 100US) @230VAC
Power factor ＞ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 16% (@230Vac, 100% load)
Stand-by power ≤0.5W
Efficiency(@230Vac,100% load) 87%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Loop-in&Loop-out quantity 30PCS(@230Vac)
Automatic circuit breaker See detailed table for type/number combinations
Output Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Load output voltage range 12V CV
Load output current 3.33A Max.
Dimensions
40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty 0
Wiring Diagrams
40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty 1
Operation Instructions
  • Short-press the PUSH switch (0.1S-1S) to turn on/off
  • Press and hold (1S-8S) for dimming (2-100% range)
  • Color temperature adjustment: Turn off lights, then press/hold to adjust from current brightness
  • Memory function: Remembers last dimming setting
  • Dimming synchronization: Up to 15 parallel or 25 series units
  • DALI dimming: 0-100% range when connected to DALI system
Note: All parameters are tested at 230VAC input and 25°C unless specified otherwise.
