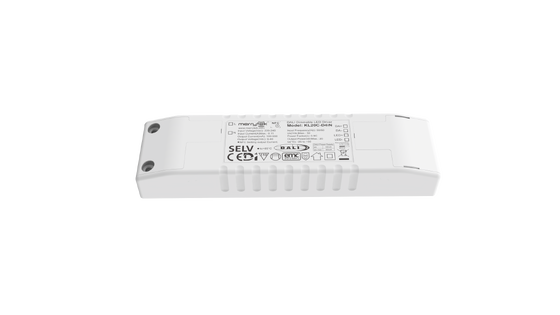

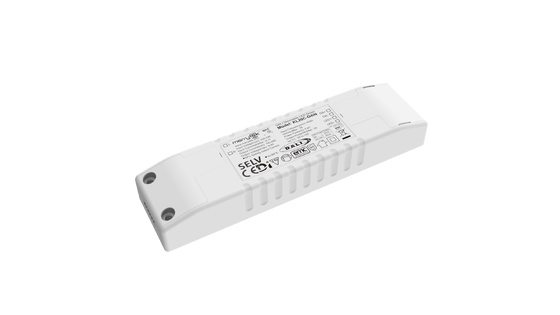

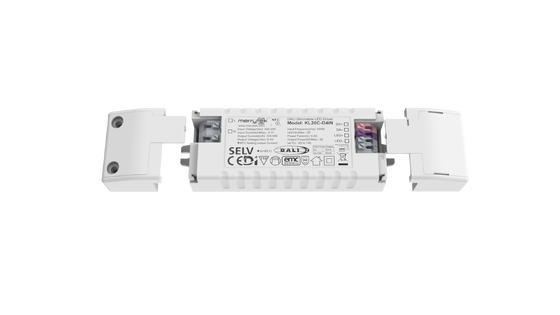

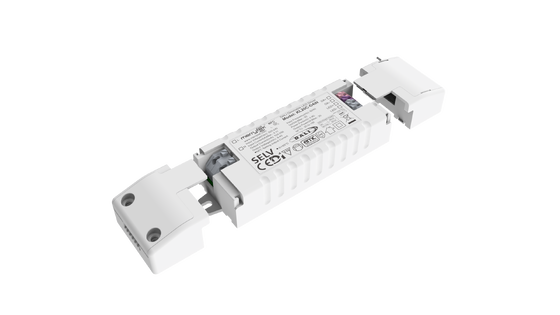

20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period

  • 20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
  • 20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
  • 20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
  • 20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
  • 20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
Plaats van herkomst China
Merknaam Merrytek
Certificering CE
Modelnummer KL20C-D4iN
Min. bestelaantal 100
Prijs Onderhandelbaar
Verpakking Details Witte doos + karton, 50 stuks/CTN
Levertijd 1, monster en kleine bestelling: binnen 5 werkdagen na ontvangst van uw betaling. 2, bulkorder: 3-4
Betalingscondities T/t of paypal
Levering vermogen 10,000pcs per maand
Productdetails
Nominale ingangsspanning 220-240Vac 50Hz /60Hz DC-invoerspanning 200-240Vdc
Bedrijfsmodus 20W D4i NFC programmeerbare constante stroomdriver Controlemethode DALI-2 D4i-stuurprogramma
Machtsfactor ≥0.9 Efficiëntie 84%
Huidig 100-550mA Dimensie 146,3x38x20,5mm
IP-classificatie IP20 Garantie 5 jaar
Laat een bericht achter
Productomschrijving
20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period 1. Description -Flicker-free for the whole dimming range -NFC technology for wireless programming -Stand-by power below 0.5W -Built-in DALI interface D4i -Centrally-supplied DC emergency operation DT19 -CLO compensation -Protection: short circuit / over temperature/ over voltage -CLO compensation -Derating the current for high ambient temperature -5-year warranty 2. Parameters Input
